YAQIN MS-500B/MS-680 300B 튜브 클래스 A 단일 종단 Hifi 통합 증폭기
Product Warranty
All items Guaranteed 100% Brand New In the original edition Box and Come from the original factory.
All items ONE-YEAR WARRANTY !!!
All items ONE-YEAR WARRANTY !!!
Shipping Time & Invoice Declare
All items ship with DHL/UPS/TNT/EMS, (DHL/UPS/TNT) About 3-7days delivery time, EMS About 7-15days delivery time.
We can Declare the Value of the Order as Customer's Remark!!!
We can Declare the Value of the Order as Customer's Remark!!!
Product Declaration
Features:
1. Dual common cathode tubes in parallel push amplification circuit.
2. The three, Class A, single-ended, gall rectifier circuit
3. Ad hoc headphone output can be used directly headset
4. Infrared remote control
5. Special Grade and merger
6. The high pressure delay protection circuit
Specifications:
Output Power: 8.5W + 8.5W (4Ω or 8Ω)
SNR: ≥84db (A-weighted)
Distortion: (8Ω time) ≤1.5% (1KHz)
Frequency response: 5Hz-40KHz (-2db)
Input Sensitivity: When you merge input: when 0.2V pure stage input: 1V
Load Impedance: 4Ω-8Ω
Tube: 300B × 2, 6N8P × 2,12AU7 × 2,5Z3P × 1

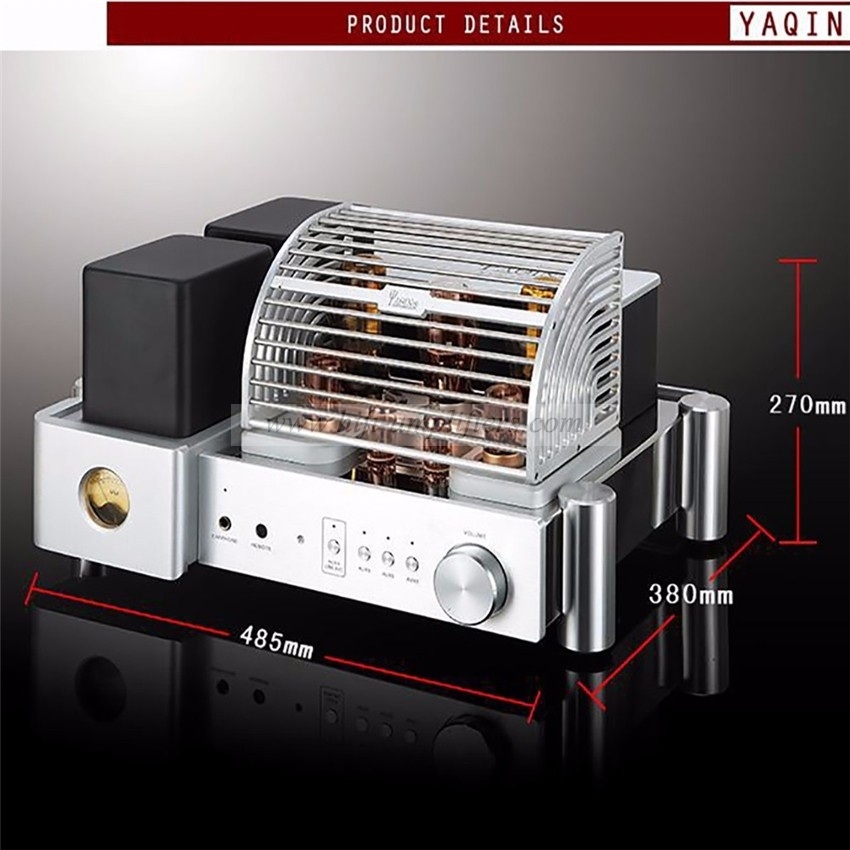

Volume: length 590mm × width 470mm × height 380mm
Gross Weight: 30kg
Maximum Power: ≤150W
Packages:
A YAQIN MS-500B unit
A Power cable
A Manual
