Line Magnetic LM-609IA HIFI 300B 관 증폭기 단일 종단 클래스 A 통합 앰프 8W*2
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!

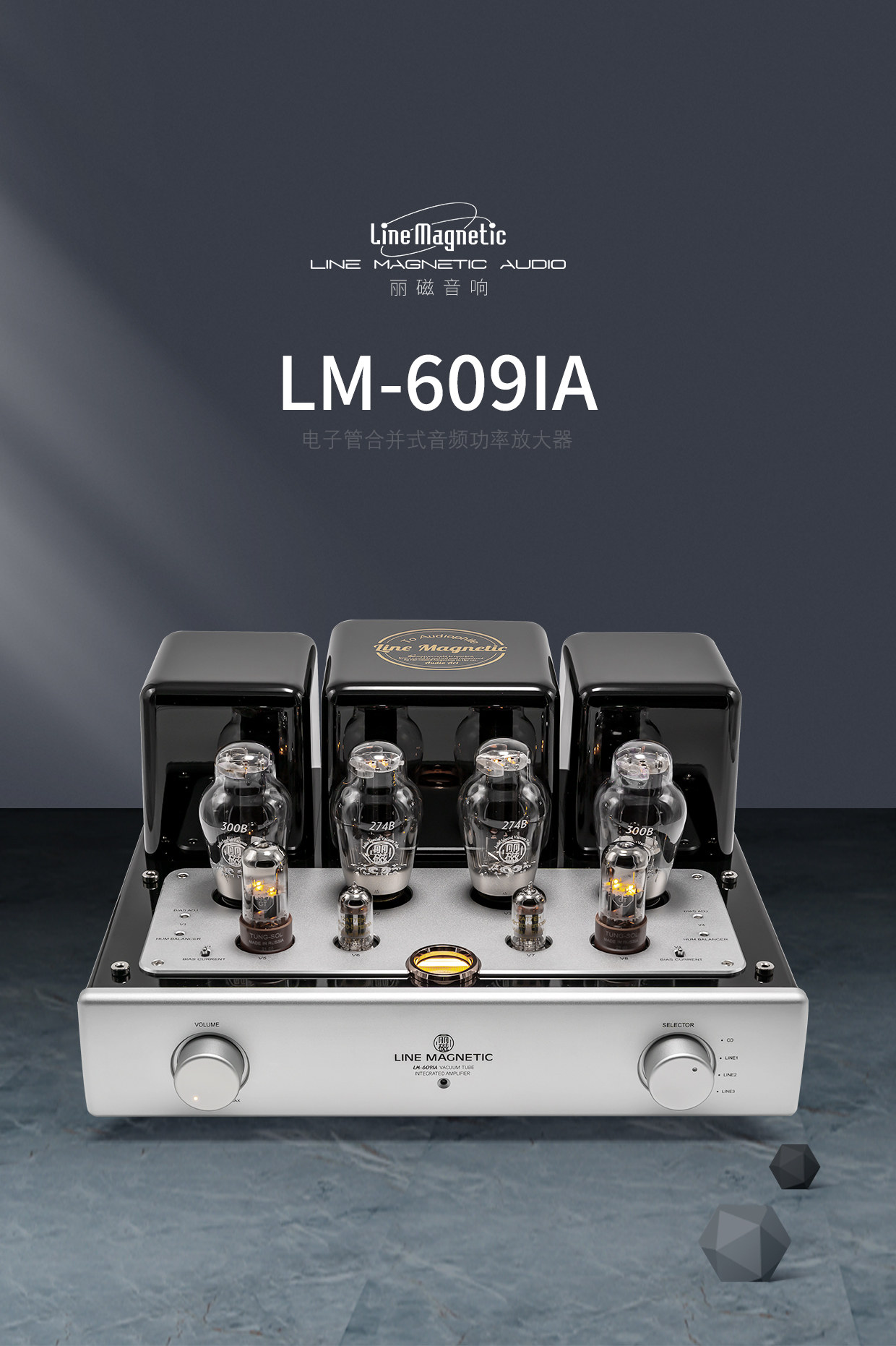

Line Magnetic LM-609IA HIFI 300B Tube Amplifier Single Ended Class A Integrated Amp 8W*2 100% origianl factory and Brand New
1、this amp can customeized 110V for US
2、After customer make order, we will order from the factory, that need wait about more one week!
3、also this AMP is packed with wood box to ship out , so don't need worry about the safety
Product features:
1、Eight watts per channel, Single Ended design, Pure Class A Integrated Stereo Amplifier with 300B output power tubes.
2、All tube Integrated with 12AX7 input tubes, 310A driver tubes and 300B output tubes.
3、4 pairs of input and speaker terminals for 4, 8 or 16 ohm speakers are located on the back panel.
4、One Meter with two pointers is located in the middle of front faceplate to allow you to monitor the power output of each channel.
5、One piece of specially designed big power EI transformer for power supply and two pieces of Single-ended EI output transformers with wide bandwidth are applied.
6、Japanese Audio grade ALPS volume potentiometer has been applied.
7、Standard with remote control for volume control and muting operation.
8、Hand made construction with the finest point-to-point wiring.
9、Easily installed tube cover for better protection.

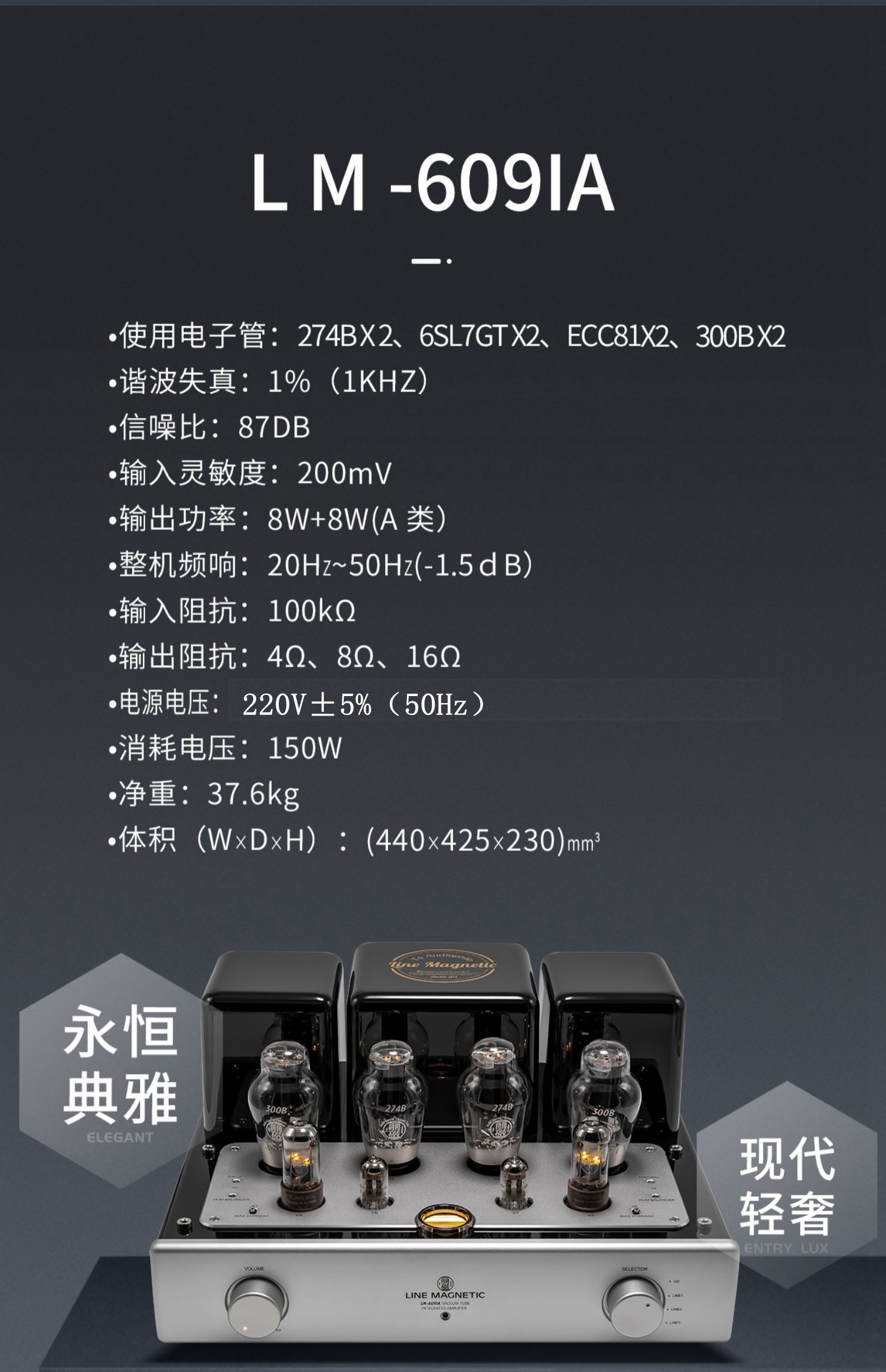

Specification:
Using electronic tubes: 274BX2, 6SL7GTX2, ECC81X2, 300BX2
Harmonic distortion: 1% (1KHZ)
Signal to noise ratio: 87DB
Input sensitivity: 200mV
Output power: 8W+8W (Class A)
Overall frequency response: 20Hz~50Hz (-1.5d B)
Input impedance: 100kQ
Output impedance: 4Q, 8Q, 16Q
Consumption voltage: 150W
Net weight: 37.6kg
Volume (WxDxH): (440x425x230) mm
