Shanling CD3.2(21) Tube à vide lecteur CD XLR balance complète haut de gamme ES9038PRO DAC Version améliorée

The new latest 2021 version is just released ,  the new features of this cd player :

1.Use philps  SAA7824HL CD mechanical module with HD850 laser head
2.the decoder chip change to 9038PRO,
3.add Bluetooth 5.0 connection with qualcomm CSR8675 chip，support LDAC, LHDC, aptX HD, aptX, SBC

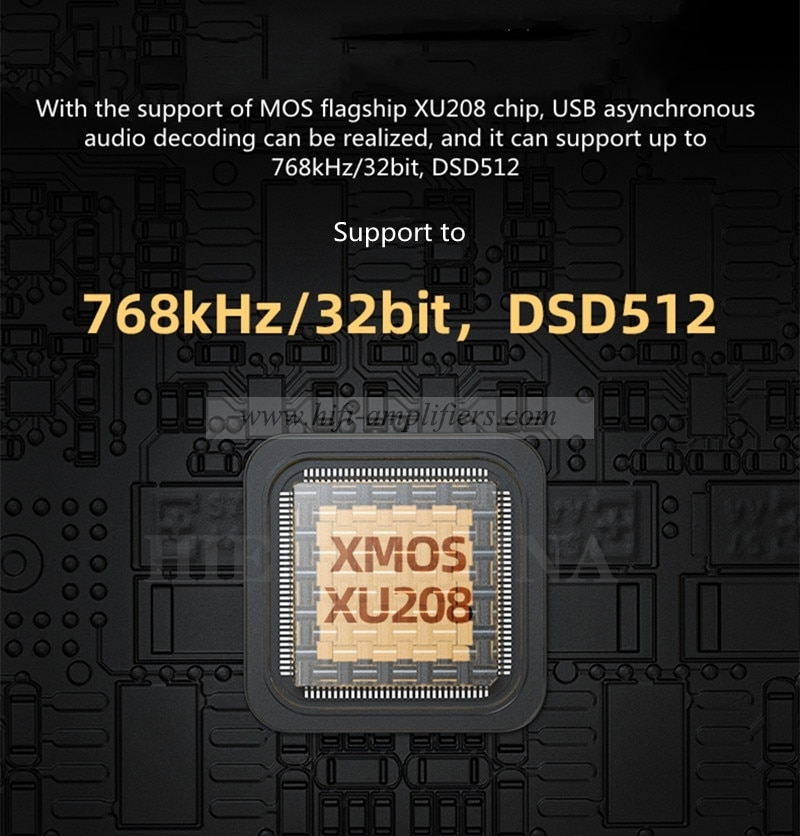

4.Upgrade to use XMOS XU208 USB chip， support  768khz/32bit sampling
5.with DSD support up to DSD512 with asynchronous data transfer

Technical parameters:
Tube:  6H30×1
DNR:   16bit >100dB   24bit >105dB
USB system:  Windows XP/7,10,  Vista,  Mac OS
AC Input:  110-120v  or 220V-240v  ±5%  50/60Hz
Power: ≤51W
Size of player: 460mm × 405mm × 132mm
Net weight: about 12kg
Package size weight :  18kg

RCA Tube ouput parameters:

1.Frequency response:  20Hz-40kHz (-0.5dB) THD+N (0.05%)(A-W)
2.Output level:   2.0 V
3.Channels separation : 90dB
4.SNR:   104dB
5.Basic Noise: 98dB
6.Dynamical rater: 104dB

Balanced ouput parameters:

1.Frequency response:  20Hz-40kHz (-0.5dB) THD+N (0.0006%)(A-W/3v)
2.Output level:   4.3 V
3.Channels separation : 110dB
4.SNR:   115dB
5.Basic Noise: 102dB
6.Dynamical rater: 115dB

Features:
1.The digital receiver chip company CRYSTAL CS8416
2.With Bleutooth 5.0 connection
3.The use of BB's SRC4193 do upconversion.
4.DA conversion chip ESS's ES9038Pro

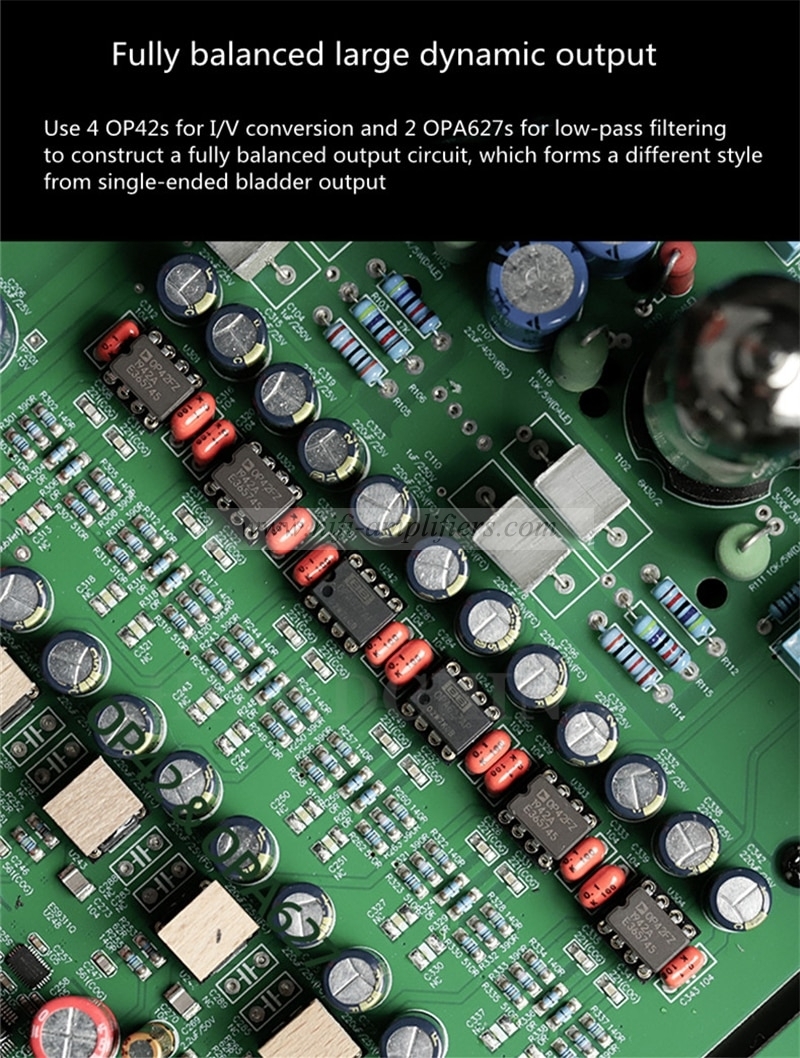

5.I / V conversion using 4x OP42
6.Low-pass filter using BB's OPA627
7.Buffer Tube: russian 6H30 vacuum tube for RCA analog signal output
8.The two high-powered R-type transformers
9.Use a high-level capacitors, resistors and other components
10.The use of gold-plated output terminals CMC816
11.Support coaxial and optical inputs (used as a DAC)
12.adopt SAA7824HL CD servo system
13.The use of C-Media 6632A USB receiver module
14.Digitale output with AES/EUB, Coaxial
15.Digitale intput with Coaxial / Optical for decoder function
16.Balanced analog output
17.DSD decode
​
