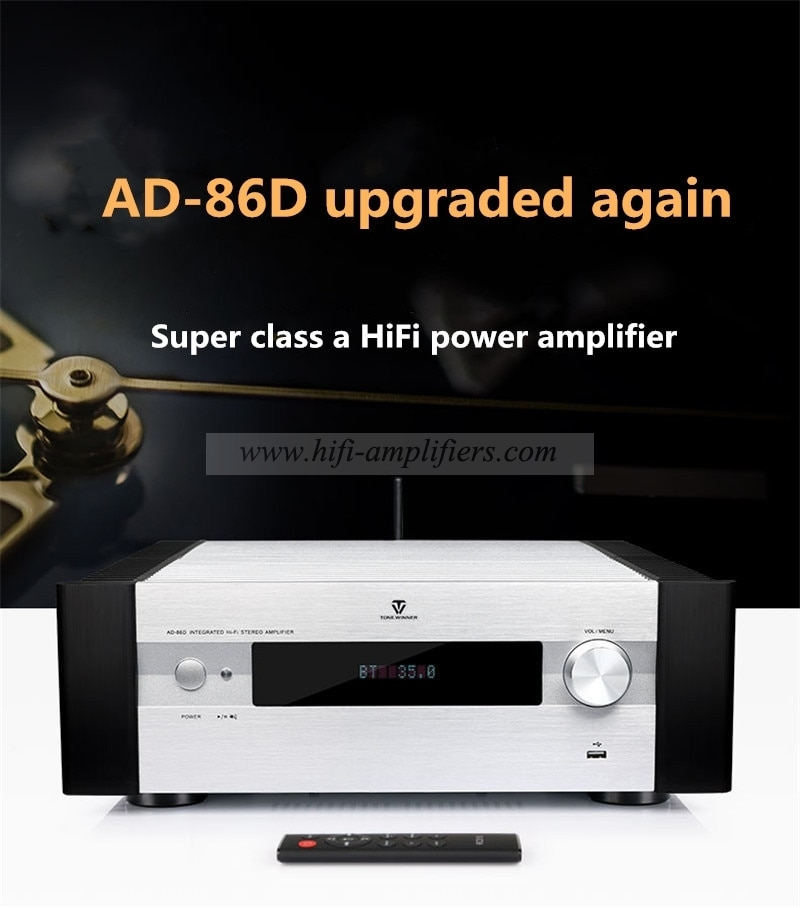

ToneWinner AD-86D Class A integrated Amplifier Balanced XLR Digital Decode & Bluetooth
![paypal paypal](images/pays.gif)
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!
ToneWinner AD-86D full Class A integrated Amplifier full Balanced XLR brand new with remote control
The ToneWinner AD-86D is a integrated Amplifier.
It can be a pre-amp or a pure power amplifier too, you just need to remove the "U" link.
It can link with CD player, DVD player, MM phono, MC phono, AUX, PC etc.
It is a 2 channels(Stereo) amplifier, you can link a Subwoofer to as 2.1 channels too.
If your sound source is a good CD player, please choose AD-86PRO.
If your sound source is a DVD player, please choose AD-86PRO+, it come with a DAC with USA AD-1955 24bit/192KHz DAC IC to get the sound better.
Specification:
Number of channels: 2
SNR: > 100dB (A count)
Frequency Range:20Hz-60KHz (+1/-3dB)
THD: < 0.05% (1KHz, normal working condition)
Output power at Class AB: 120W * 2 (8ohms, THD = 1%, 1KHz)
Output power at Class AB: 20W*2
The key "MODE" on remote control can set the Class A, Class AB, or AUTO.
When "AUTO", it will work in Class A or Class AB automatic according to the temperature changing.
Rated impedance: 4 ohms - 8 ohms
Input impedance: 10 kOhms
Power consumption: 400W/4
Gain: 41dB
400VA giant ring type transformer
Fever volume control chip CS3310
The former op amp with the United States BB company OPA2134
8 pcs Toshiba TTC-5200 / TTA1943 high-power transistor
Material: aluminum alloy
Dimension: (W)444mm, (D)455mm, (H)160mm
Net Weight:18.5kg
Packing Dimension: 568mm * 553mm * 293mm
Gross weight:24kg
Power supply: AC 220V (+-10%)
