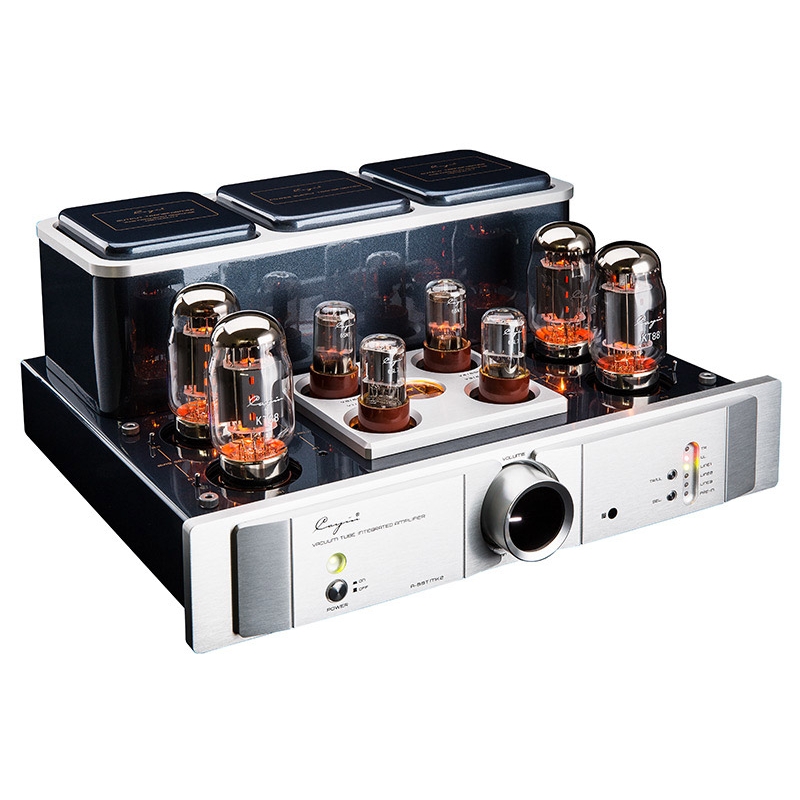

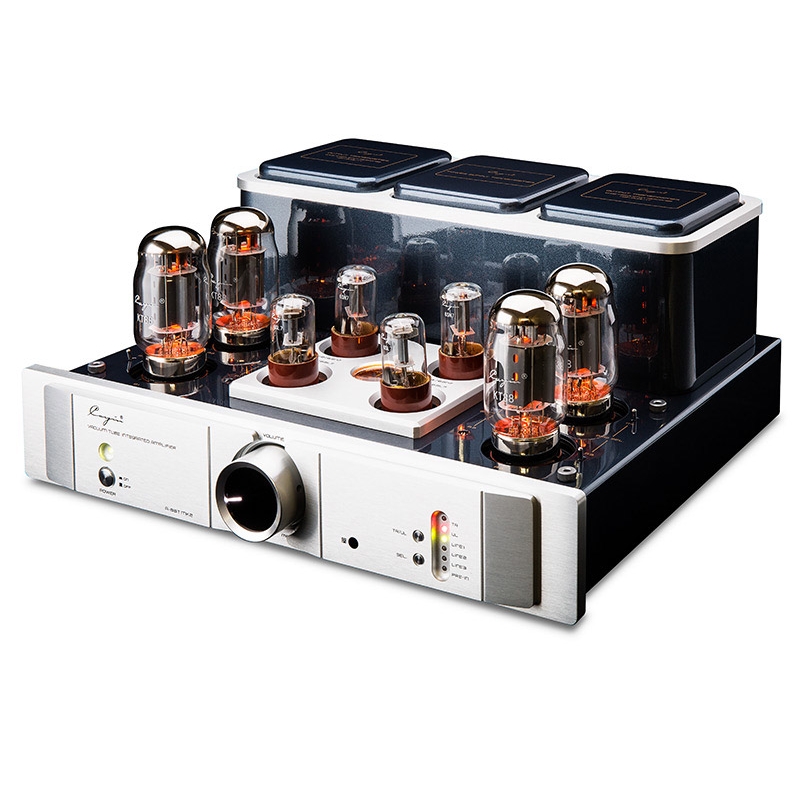

Cayin A-88T MK2 tube KT88/6550*4 Integrated Amplifier Audiophile Power Amp Class AB Push-pull Amplifier
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!
Cayin A-88T MK2 is an integrated Amplifier, it is a Power Amplifier too. (there is a group Power amp input).
One amplifier can used wiht tube EL34, KT88 or 6550, so, you can get 3 kinds of sound if you buy more 2 new sets of tube.
Features:
Optimized amplifier circuit to improve sound quality
The key position is Japan's Takman carbon film fever grade resistor. Realcap PPMF-S series high-end coupling capacitors provide better musical performance
Increase BIAS meter indication and external BIAS ADJ. adjustment to facilitate monitoring of power tube operation status and adjustment
New Power Amplified Tube Selector Switch for Easy Replacement of KT Series and EL Series Tubes
Added shutdown memory function
The base station uses high-grade automotive paint technology, high-end luxury appearance
Perfect protection circuit greatly reduces the risk of damage to power supply and output transformers
Specifications:
Output power:
2×45W(KT88/6550(EH) tube), 2×35W(EL34 tube) (RMS ultra-linear)
2×25W(KT88/6550(EH) tube), 2×18W(EL34 tube) (RMS triode)
Frequency response: 10Hz~40kHz
Harmonic distortion: 1% (1kHz)
Output Impedance: 4Ω, 8Ω
Input impedance: 100kΩ
Signal to noise ratio: 93dB
Input sensitivity:
300mV (when combined input)
1000mV (when pure post input)
Dimension: 420mm × 382mm × 195mm (W × D × H)
Net weight: 28kg
Gross weight: 30kg
Power consumption: 280W
Tube: 6SL7×2, 6SN7×2, KT88×4(or 6550(EH)/EL34x4)
Power supply: AC 220V(+-5%) 60Hz/50Hz
Working conditions: Temperature: 0 °C ~ 40 °C Humidity: 20% ~ 80%
Storage conditions: Temperature: -20 °C ~ 70 °C Humidity: 20% ~ 90%
