Cayin A-88T MK2 Referenz-Leistungsverstärker HiFi Genalex KT88x4 Röhren-Vollverstärker
All items ONE-YEAR WARRANTY !!!
We can Declare the Value of the Order as Customer's Remark!!!
Cayin A-88T MK2 Reference Version Vacuum Tube Integrated AMP TR/UL Mode Max45Wx2 BIAS ADJ External Tube SEL KT88x4
this is the Reference Version of the Cayin A-88T MK2.the list of upgraded:
1. the tubes have upgraded to Genalex KT88
2. the internal wiring upgraded
3. the appearance upgraded
4. the transformer upgraded
5. it come with the remote control
Product introduction:
1. Elegant high gloss wooden side benches
2. Specially new designed output transformers for this edition
3. Platinum matched quad 4 x GENALEX GOLD LION KT88
4. Gold plated phosphorated copper pins porcelain tube sockets
5. High end purple copper speaker out terminals
6. Teflon Silver plated high purity internal wiring
7. Famous rich and noble Gold Lion KT88 sound
8. High precision VU meter on the top plate
9. Bias adjustment easily done outside
10. 6SL7x2 + 6SN7x2 for preamplifier session

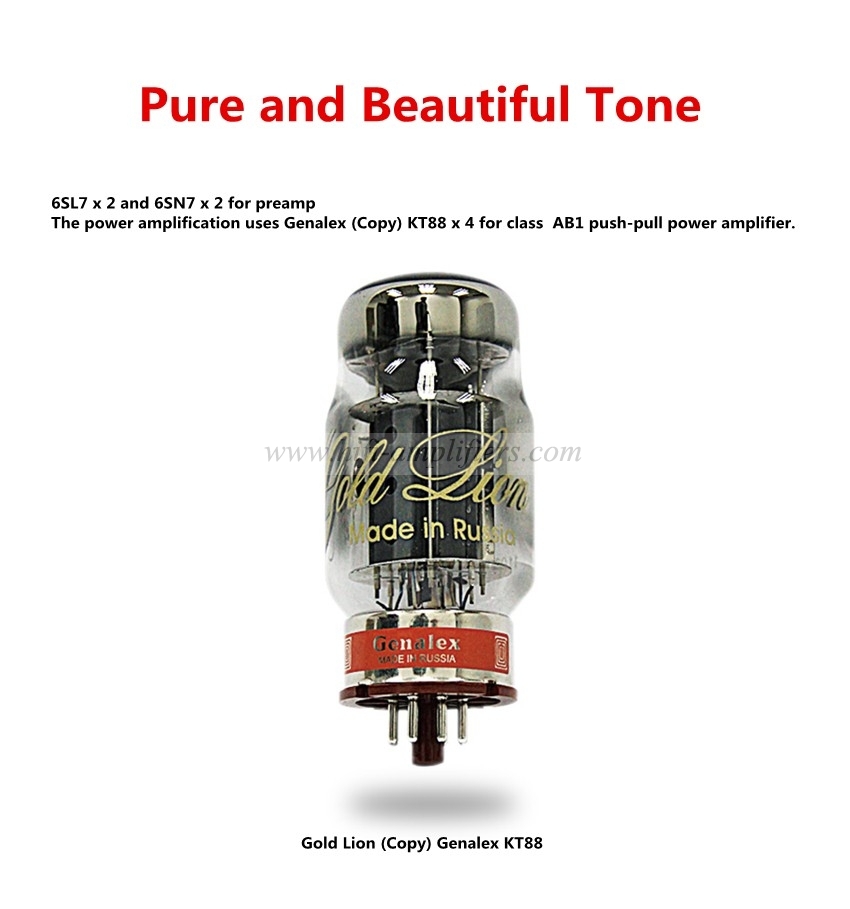

11. The power amplification uses Gold Lion copy Genalex KT88x4 for class AB1 Push-pull power amplifier
12. Japan Takman carbonic film high end for audio resistors
13. New protection circuitry for ac and audio transformers

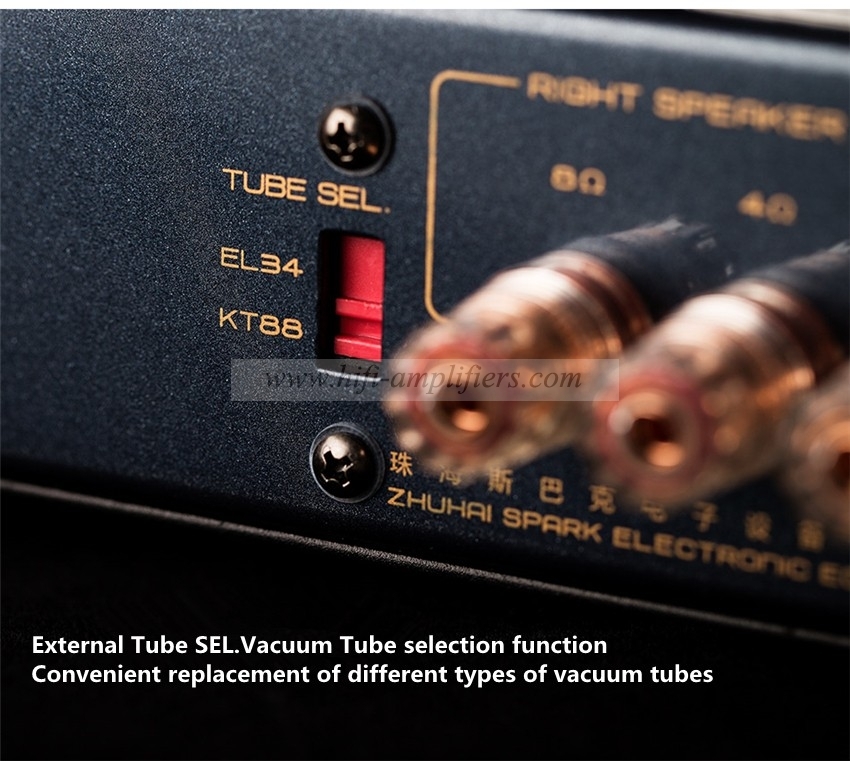

14. External independence BIAS ADJ
15. Power off memory function
16. Automobile grade paint finish on top chassis
17. Can be used as integrated amplifier or power amplifier
18. High end Nichicon capacitors and audio choke coil
19. High quality Japan ALPS motorized volume control
20. Ultralinear / Triode mode selection (selectable via remote control unit)
21. All point to point wiring (hand soldering)
22. Fully remote controllable
23. 3 pairs RCA input + 1 pair RCA pre-amplifier input
24. With pure power amplifier
25. 4Ω / 8Ω selectable output load impedance
26. Removable metallic tube protection cage included
Technical parameter:
Output Power: 25W+25W (RMS Triode mode)
45W+45W (RMS Ultralinear mode)
Frequency Response: 10Hz~42kHz (-3dB)
Harmonic Distortion: 1% (1kHz)
Output Impedance: 4Ω, 8Ω
Input Impedance: 100kΩ
SNR: 93dB
Input Sensitivity: 300mV (be Integrated AMP)
1000mV (be power AMP)
Supply Voltage: ~220V±5% 50Hz
Power Consumption: 280W
Tube: 6SL7 x 2, 6SN7 x 2, Copy Genalex KT88 x 4
Volume: 420x382x195 mm
Net Weight: 34KG
